Start prototyping today!
NeoCortec offers a range of FeatherWing breakout boards designed to facilitate rapid prototyping and integration of NeoMesh wireless mesh network modules. These boards are compatible with the Adafruit Feather series of development boards, supporting the Arduino development environment, making them very easy to work with.
Breakout boards support two modes of usage:
– Stand alone
– Featherwing compatible with Adafruit Feather development boards
As an example, we have integrated NeoCortec gateway software with the Adafruit Feather ESP-32 WiFi device. This allows you to create a low cost gateway design, which can easily bridge between the low power mesh network and an IP based network or your preferred Cloud solution.
Effortless Prototyping with NeoMesh modules
Use the breakout board to interface between the NeoMesh Wireless Mesh Network module and a host controller or a sensor.
ADAFRUIT FEATHER MODE
The formfactor of the breakout board is designed to fit directly with the Adafruit range of development boards, allowing easy integration with microcontrollers which can be used to create very advanced prototypes of actual NeoMesh based products.
STAND-ALONE MODE
The breakout board can also be used on its own, without an Adafruit Feather base-board. Easy access to the I/O’s on the NeoMesh module makes it simple to interface with sensors and actuators directly. Hook up a small battery to the breakout board, and a full sensor prototype is done in no time.

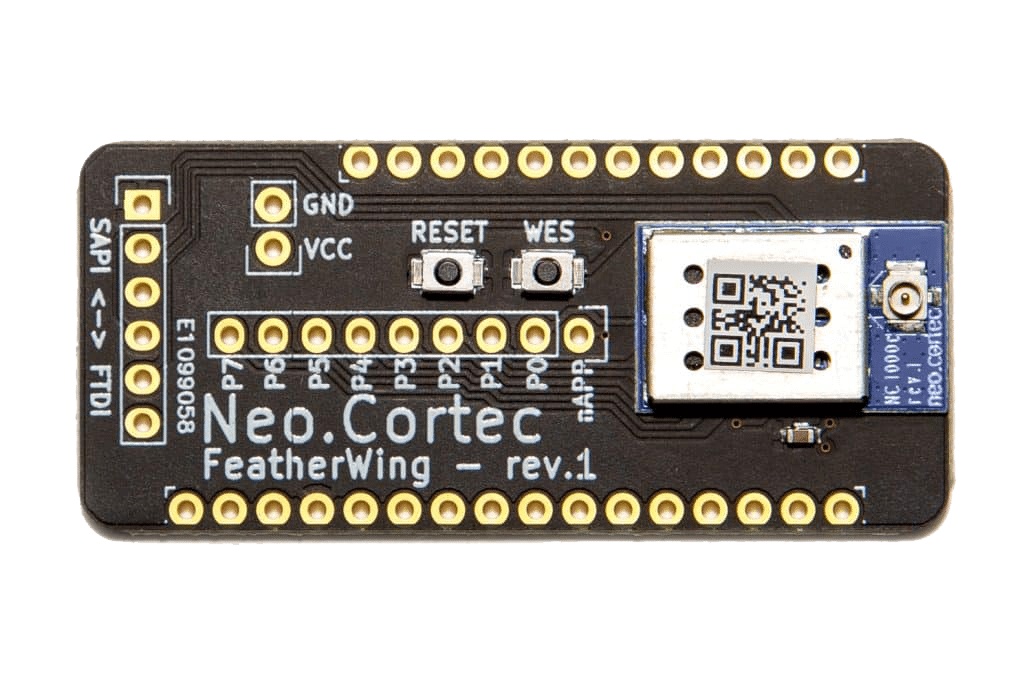

NC1000-8 Featherwing
Key Features:
Frequency Band: 868 MHz (EU-specific)
UARTs, GPIOs, I2C, DC/ADC
u.FL/IPEX connector for antenna
Certifications: CE-RED
Compatible with Adafruit Feather dev boards
Download datasheet
NC1000-9 Featherwing
Key Features:
Frequency Band: 915 MHz ISM Band
UARTs, GPIOs, I2C, DC/ADC
u.FL/IPEX connector for antenna
Certifications: FCC, IC pre-approved
Compatible with Adafruit Feather dev boards
NC2400 Featherwing
Key Features:
Frequency Band: 2.4 GHz ISM Band
UARTs, GPIOs, I2C, DC/ADC
u.FL/IPEX connector for antenna
Certifications: CE, FCC, IC pre-approved
Compatible with Adafruit Feather dev boards
Get Expert Guidance for Your Wireless Mesh Network Needs
Need Help Choosing the Right Module?
Not sure which module is right for your project? Our team of experts is ready to assist you. Whether you need technical details, application support, or advice on integration, we are here to help you succeed.
